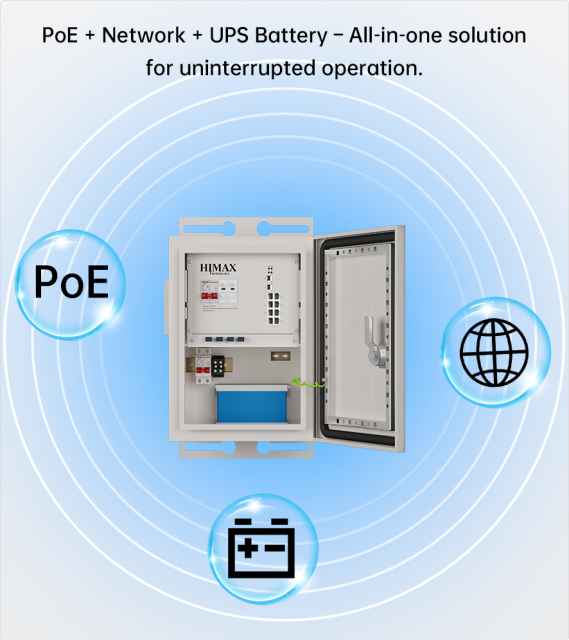

The SBOX2802SFGB-I-144WH is an Outdoor Industrial PoE Switch Box equipped with a UPS 240W and 48V3AH LiFePO4 Battery (144Wh) for reliable backup power, ensuring continuous operation even during power interruptions.
It features 8× 10/100/1000Mbps PoE ports (with up to 2 ports supporting 90W PoE++) and 2× 1000Mbps SFP slots, delivering high-performance networking in harsh environments ranging from -40° to 75°C. With high protection and lightning resistance, it meets the deployment needs of rail transit, smart cities, intelligent transportation, outdoor surveillance, and other demanding applications.
Additionally, it supports full Layer 2 features, including VLAN, QoS, Multicast, Port Mirroring, LLDP, Security, Spanning Tree, and ITU-T G.8032 ERPS ring protection, along with PoE management and SNMP network management.
The built-in 144Wh LiFePO4 UPS battery provides stable and long-lasting backup power, ensuring uninterrupted operation for critical network infrastructure in remote and outdoor deployments.
|
Model |
SBOX2802SFGB-I-144WH |
||
|
Interfaces |
|||
|
Interface |
8*10/100/1000Base-T PoE ports (Data/Power) |
||
|
Ethernet Port |
Port 1-8 support 10/100/1000Base-TX, auto-sensing, Full/half duplex |
||
|
UPS Battery |
Built-in 48V3AH 144Wh LiFePO4 240W UPS battery provides stable and long-lasting backup power |
||
|
PoE |
|||
|
PoE Standard |
IEEE802.3af/at/bt (Port1-Port2 Support BT90W Output) |
||
|
SFP Port |
Gigabit SFP optical fiber port, default matching optical modules (optional |
||
|
Power Adaptor |
240 W |
||
|
LED Indicators |
PWR，OPT, NMC，ALM |
||
|
Power Interface |
AC Input |
||
|
Optical Cable |
Multimode: 850nm 0 ~ 550M, |
||
|
Network Topology |
Support Star topology, Bus topology, Tree Topology, Hybrid topology |
||
|
Input voltage |
AC100-240V, 50/60Hz 240W DC55V U P S power module built-in |
||
|
Total Power consumption |
≤ 10W without PoE (full load) ≤ 2 5 0 W with PoE (full load) |
||
|
Battery backup |
DC12V/24V/48V Lead-acid/Lithium (not included) |
||
|
Voltage Alarm |
Support |
||
|
Switch Property |
|||
|
Switching capacity |
20 G |
||
|
Packet forwarding rate |
14.88 Mpps |
||
|
MAC address table |
8 K |
||
|
Buffer |
4.1 M |
||
|
Forwarding delay |
<10 us |
||
|
MDX/MIDX |
Support |
||
|
Jumbo Frame |
Support 10K Bytes |
||
|
Network Topology |
Ring topology |
Support |
|
|
Star topology |
Support |
||
|
Bus topology |
Support |
||
|
Tree Topology |
Support |
||
|
Hybrid topology |
Support |
||
|
Layer 2/3 Switching
|
User Management |
Support |
|
|
System Log |
Support |
||
|
Upgrade Firmware |
Support |
||
|
Configuration File Download/Upload |
Support |
||
|
SNMP |
Support |
||
|
WEB Managed |
Support |
||
|
CLI |
Support |
||
|
Telnet/SSH |
Support |
||
|
RMON |
Support |
||
|
Surveillance VLAN |
Support |
||
|
MAC VLAN |
Support |
||
|
Etherchannle/ 802 .3ad |
Support |
||
|
LACP |
Support |
||
|
Interface Speed |
Support |
||
|
Duplex Mode |
Support |
||
|
Flow Control |
Support |
||
|
Jumbo frame |
Support |
||
|
DHCP Client |
Support |
||
|
SNTP Client |
Support |
||
|
Port Statistics |
Support |
||
|
Protected Ports |
Support |
||
|
Ethernet Ring Protection Switching |
Support |
||
|
LLDP |
Support |
||
|
LLDP 802.1 TLV |
Support |
||
|
MSTP / RSTP / STP |
Support |
||
|
STP BPDU Filter |
Support |
||
|
STP BPDU guard |
Support |
||
|
STP Port Fast |
Support |
||
|
IGMP Snooping |
Support |
||
|
MLD Snooping |
Support |
||
|
MVR |
Support |
||
|
IPV4 |
Support |
||
|
IPV6 |
Support |
||
|
ARP |
Support |
||
|
Loop back Interface |
Support |
||
|
DHCP Server |
Support |
||
|
DNS Server |
Support |
||
|
Environment |
Operating temperature |
-40℃~+75℃ The device is tested for 4 hours at temperatures in 85℃ |
|
|
Storage temperature |
-40℃~+85℃ |
||
|
Relative humidity |
5%~95% non-condensing |
||
|
Thermal methods |
Auto Fans Cooling |
||
|
MTBF |
100,000 hours |
||
|
Product size |
500(H)*380(W)*220(D) |
||
|
Installation Method |
Wall Mounting/Pole Mounting |
||
|
IP Level |
IP55 |
||
