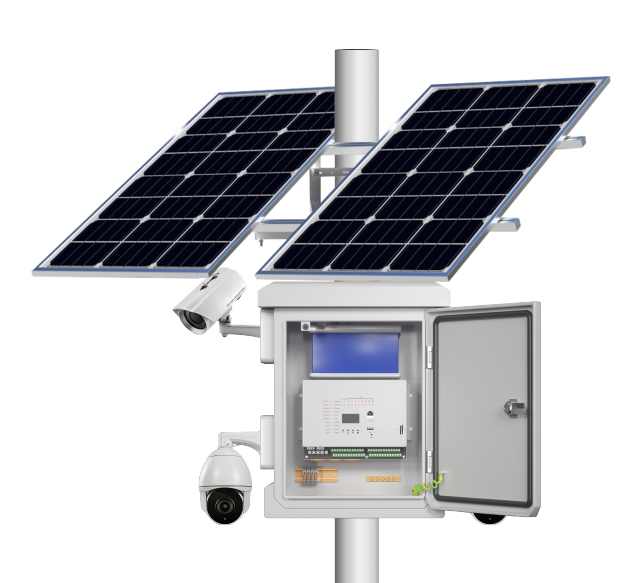

The SBOX2802SFGBS-I Solar IoT Smart Box sounds like a highly efficient and versatile solution for outdoor video surveillance projects. By integrating all essential components (industrial switch, power supply, 4G antenna, surge protection, splice tray for fiber optics, AC IN/OUT, DC12-24V OUT, DI/DO connection, solar panel connection, and battery connection) into a single unit, it simplifies installation and maintenance. It also supports web management and remote control!
The IP55-rated robust housing ensures durability in harsh outdoor environments from -40° to 75°, making it suitable for a wide range of applications, including Video surveillance monitoring, LED lighting, WLAN access point Wi-Fi coverage, Transportation monitoring, Water supply monitoring, Safety during takeoff or landing, etc.
|
Model |
SBOX2802SFGBS-I |
|
Interface specifications |
2*1000 optical ports, 8*10/100/1000 interfaces support PoE power supply, 1 RJ45 out-of-band management, 1 RJ45 console port, one USB port and one SIM card port |
|
PoE protocol |
IEEE802.3af/at/bt (bt 90W is optional） |
|
Power Input |
DC24V ( 2DC 24V, one connect to Solar Panel, one connect to battery) |
|
Power Supply Output Port |
4-way DC12V individual control output |
|
1-way DC24V |
|
|
1-way AC24V |
|
|
Intelligent cabinet management |
|
|
Temperature control |
Intelligent temperature control, and can set temperature parameters to automatically start and stop the fan |
|
AC monitoring |
AC monitoring, monitor and display AC voltage and current, automatically collect overvoltage, undervoltage, and overcurrent protection alarm information, and remotely control the switch to automatically reclose |
|
Remote signal |
Remote signal detection of lightning arrester status |
|
Humidity parameters |
Normally detect temperature and humidity parameters and display |
|
Door status |
Normally detect cabinet door status open/close |
|
Door linkage |
Support lighting and cabinet door linkage, cabinet door open, lighting on, cabinet door closed, lighting off |
|
Water immersion |
Support water immersion monitoring and actively report alarms |
|
Serial port and switch quantity management (Optional） |
|
|
Serial port |
Support 2-way 485/232 serial ports, support 4-way DI/DO switch quantity |
|
Status detection |
Remote opening/closing of serial ports and switch quantity, and display of serial port and switch quantity connection status detection |
|
Flow detection |
Detection of serial port TX, RX flow |
|
Serial port configuration |
Configuration of serial port baud rate, start bit, check bit, stop bit, flow control and other parameters, support configuration of tcpip, port number, and other Ethernet encapsulation contents, so that serial port data can be transparently transmitted |
|
Indicator light |
Indicator light to display the connection status of serial port and switch quantity |
|
Customized serial port |
Customized serial port external device protocol docking |
|
Switching network management |
|
|
Network port management |
Network port management, remote opening/closing of interface |
|
MTU |
Setting MTU to ensure stable and reliable transmission of large data frames |
|
Flow control |
Flow control function, automatically adjust the occurrence rate |
|
VLAN |
Support VLAN function, divide unconnected services to prevent interference |
|
Whitelist |
Support MAC address whitelist, secure access authentication |
|
Traffic statistics |
Support port traffic statistics |
|
PoE management |
PoE management, query and display PoE power supply voltage, current, power |
|
4G network management (Optional） |
|
|
4G Status |
Support remote viewing of 4G status, such as the acquired address, module frequency band information, signal status, uplink and downlink traffic |
|
Network priority |
Support network priority setting: priority 4G/priority wired interface |
|
Management data |
Support simultaneous transmission of business and management data |
|
APN |
Support manual modification of APN information |
|
SIM card |
SIM card presence detection |
|
Solar control management |
|
|
Solar data reading |
Support solar panel voltage, current and power reading and display |
|
Battery data reading |
Support reading battery status |
|
Support collecting the lowest voltage of the battery on the day, the highest voltage of the battery on the day, the maximum current of the day, the maximum current of the day, the maximum power of the day, the maximum power of the day, the ampere-hours of the day, the ampere-hours of the day, the power generation of the day, and the power consumption of the day |
|
|
Support reading the number of days the device is running, the number of over-discharges, and the number of full charges |
|
|
Fault reporting |
Support solar energy and battery fault reporting: such as: battery reverse connection, battery low temperature protection (temperature is lower than the lower limit of charging) stop charging, overcharge protection, stop charging battery low temperature protection (temperature is lower than the lower limit of discharge) prohibit discharge, battery high temperature protection (temperature is higher than the upper limit of discharge) prohibit discharge, battery (lead-acid) reverse connection is not detected, solar panel working point overvoltage, photovoltaic input overvoltage, photovoltaic input power is too large, battery high temperature protection (temperature is higher than the upper limit of charging) prohibit charging, load power is too large or load overcurrent, load short circuit, undervoltage warning battery overvoltage , battery over-discharge and other alarms |
|
System management |
|
|
Username and password management |
Support |
|
Software and hardware version display |
Support |
|
Remote upgrade of firmware and configuration |
Support |
|
Remote restart |
Support |
|
Factory reset |
Support |
|
NTP clock |
Support |
|

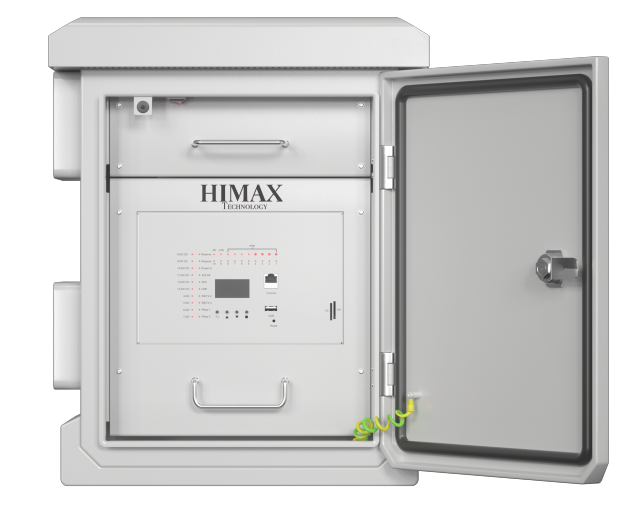

Case specification |
|
|
Door |
Built-in waterproof strips, reinforcement ribs |
|
Box lock |
Triangular lock |
|
Communication path selection |
optical fiber or RJ45 uplink , 4G(Optional） |
|
Communication protocol |
Integrated multi-protocol access supports transparent transmission, MQTT, TCP/IP, UDP, HTTP, etc. |
|
OLED screen |
13 inches |
|
Fan |
DC24V intelligent temperature control fan |
|
Indicator |
DC24V operation, alarm indicator |
|
I/O module (Optional） |
4 DI and 4 DO |
|
Serial port (Optional） |
RS232/RS485 3 channels in total |
|
Installation method |
Hanging rod or wall hanging installation |
|
Dimension |
|
|
Size |
550*380*220 |
|
Weight |
15kg |
