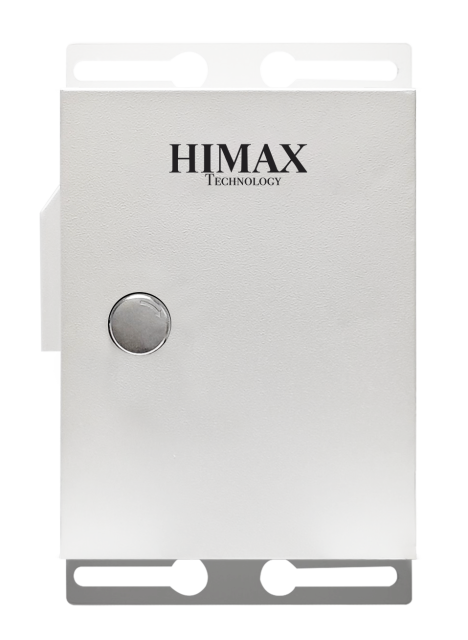

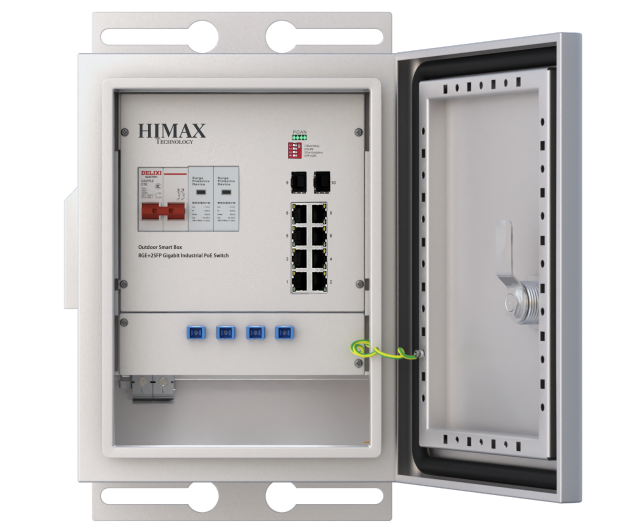

SBOX1802SFG-I

Model

SBOX1802SFG-I

Interfaces

Interface

8*10/100/1000Base-T PoE ports (Data/Power)
2*100/1000Base-X uplink SFP fiber slot port (Data)

Ethernet Port

Port 1-8 support 10/100/1000Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption

DIP Switch

AI Watchdog, Port isolation, VLAN, Port Priority +QOS

PoE

PoE Standard

IEEE802.3af/at

SFP Port

Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

Power Adaptor

300 W

Physical Characteristics

LED Indicators

PWR，OPT, NMC，ALM

Power Interface

AC Input

Optical Cable

Multimode: 850nm 0 ~ 550M,
single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

Network Topology

Support Star topology, Bus topology, Tree Topology, Hybrid topology

Input voltage

AC100-240V, 50/60Hz

Total Power consumption (POE)

< 246 W

Voltage Alarm

Support

Layer 2 Switching

Switching capacity

26 G

Packet forwarding rate

19.34 Mpps

MAC address table

16 K

Buffer

2 M

Forwarding delay

<5 us

MDX/MIDX

Support

Jumbo Frame

Support 10K Bytes

WatchDog

Support

Port Isolation

Support

Environment

Operating temperature

-40℃~+75℃

The device is tested for 4 hours at temperatures in 85℃

Storage temperature

-40℃~+85℃

Relative humidity

5%~95% non-condensing

Thermal methods

Auto Fans Cooling

MTBF

100,000 hours

EMC & Ingress Protection

IP Level

IP55

Surge protection of Power

IEC 61000-4-5 Level X（8KV/6KV）

Surge protection of Ethernet port

IEC 61000-4-5 Level X（8KV/6KV）

RS

IEC 61000-4-3 Level 3（10V/m）

EFI

IEC 61000-4-4 Level 3（1V/2V）

CS

IEC 61000-4-6 Level 3（10V/m）

PFMF

IEC 61000-4-8 Level 4（30A/m）

DIP

IEC 61000-4-11 Level 3 （10V）

ESD

IEC 61000-4-2 Level 4（8K/15K）

Product size

220X230X387mm

Installation Method

Wall Mounting/Pole Mounting
