384WH CCTV Solar Power Supply System with 60W Solar panel and 12.8V 30AH LIFEPO4 Batteries
Features:

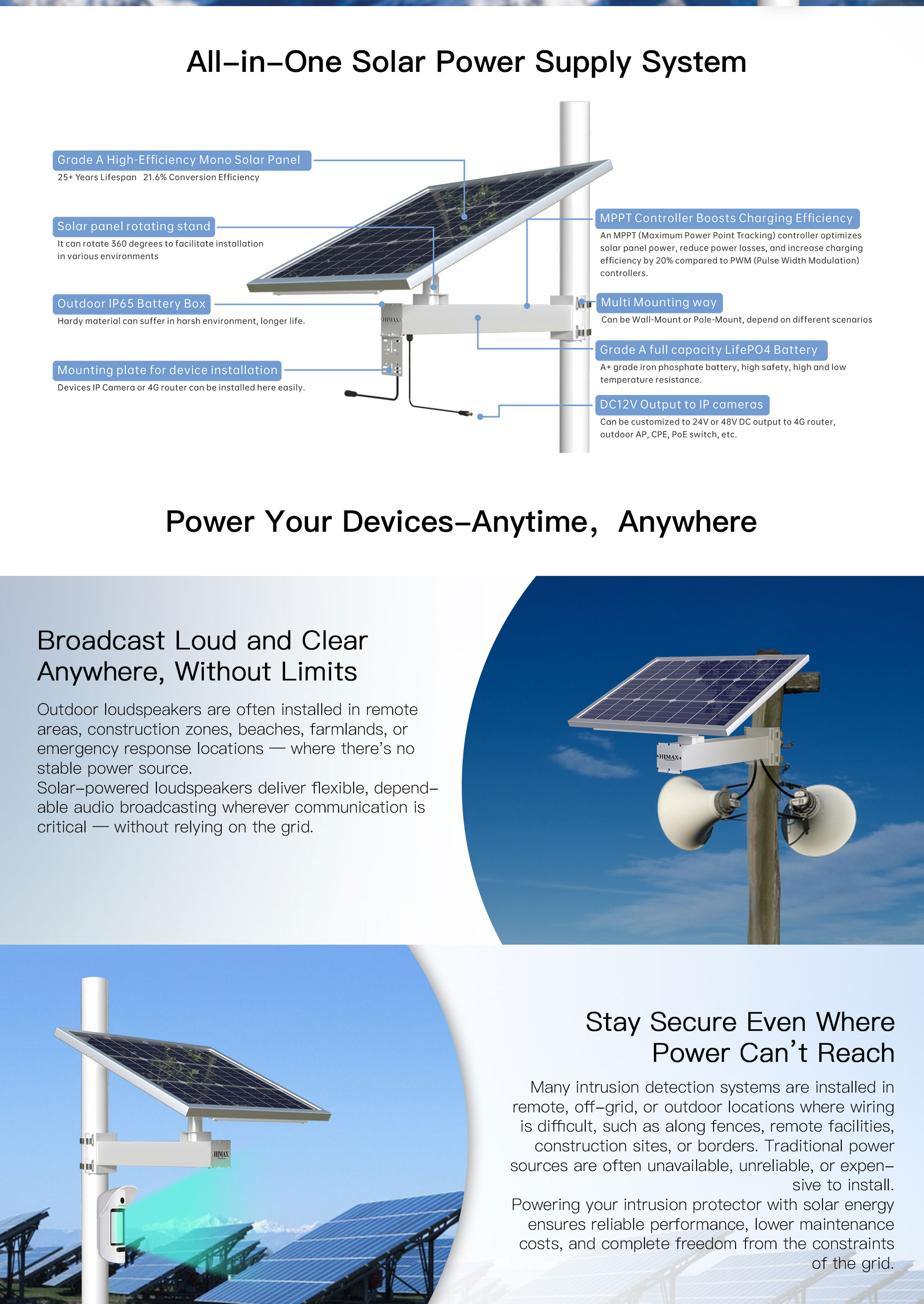

◎ CCTV Solar Power Supply 60W30AH Solution ◎ Solar panel: 60W monocrystalline silicon solar panel ◎ Battery: 30AH12.8V LifePO4 Battery, total: 384WH ◎ Solar Controller ◎ Installation Bracket for Solar Panel and Battery ◎ 2*DC12V OUT ◎ Other accessories: Battery Mount, Screws, DC Cable, etc

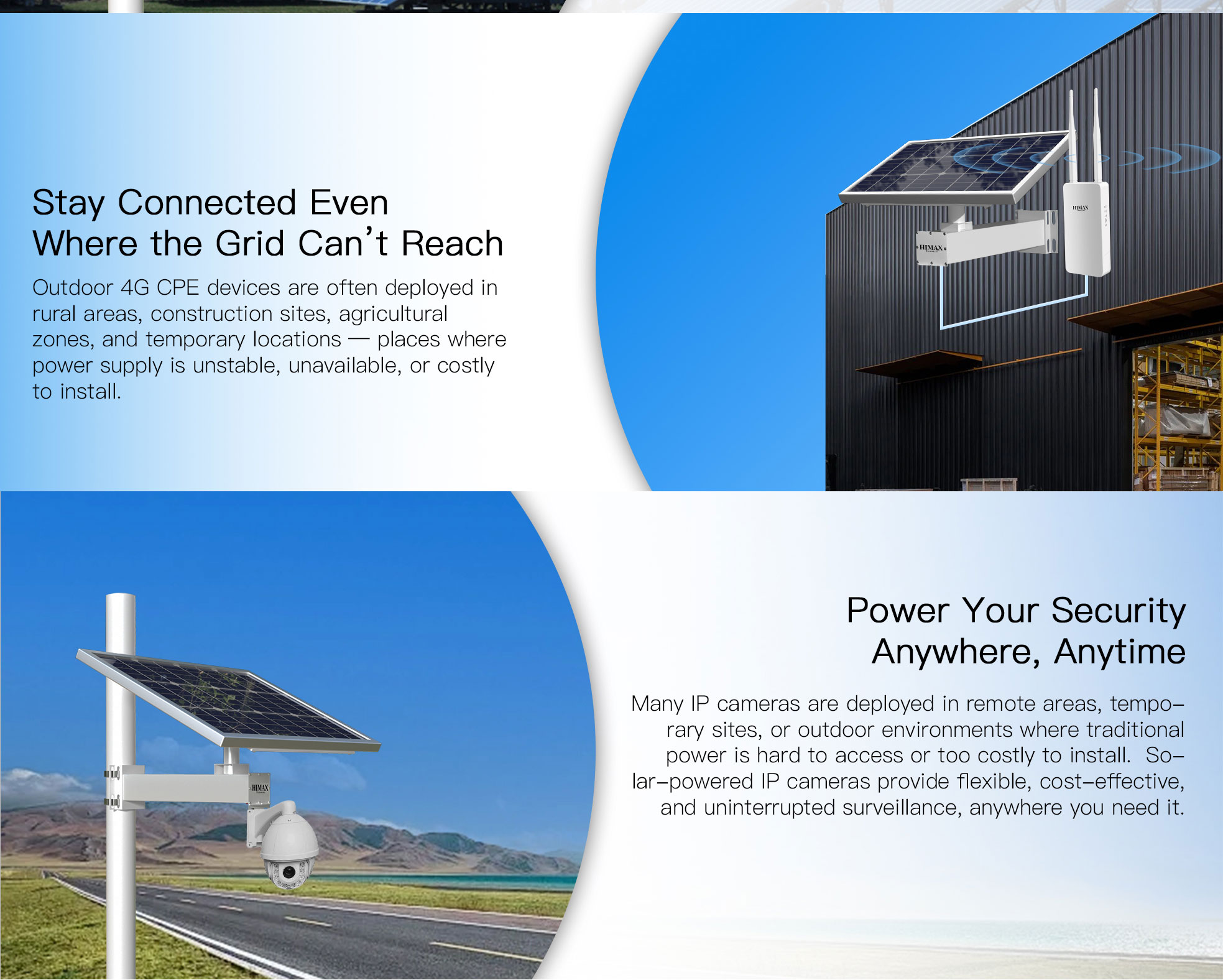

With an efficient Mono solar panel and high-capacity LifePO4 battery, the Himax solar power supply system delivers constant power to outdoor equipment such as network bridges and cameras. Perfect for areas where network and power deployment is tough, it eradicates wiring hassles and cuts investment costs.
This system is suitable for devices with a total front-end power consumption of less than 20W. Exceeding this limit may result in insufficient power supply.
No external power supply is needed; it utilizes solar energy for power generation, easy installation, can be installanywhere, plug and play , It provides stable power output and has high stability and reliability.
Efficient power generation balance and energy storage adjustment system, which automatically manages and optimizes its operating status.
Reasonable circuit design for solar components, excellent anti-shading capability, reduces hot spot risks, and enhances product reliability.
Anti-microcrack design, strict control with three EL inspections. Low resistance effectively reduces internal losses in the components.
High safety and low-temperature discharge performance.
Battery has an IP65 protection rating, suitable for outdoor installation.
Support frame surface is treated with outdoor corrosion-resistant powder.
The installation method uses U-shaped clamps, requiring no drilling, suitable for various poles.
Installation screws are made of high-strength stainless steel, surface treated with Dacromet.
Load connection wires use RVV cables, waterproof blind plugs for battery connections.
Supports 485 remote communication.
Good anti-vibration structure to prevent vibrations from affecting optical instruments and video image quality in pole tower installation environments.
Model
CS6030 (60W30AH12.8V)
Solar Panel Specification
STC peak power
60W (single piece)
Module packaging
Tempered glass/EVA/cell/EVA backplane
Solar silicon crystal
Mono-crystalline silicon
Crystalline silicon characteristics
High efficiency of strong light conversion
Cell size and quantity
210*40/33
Maximum output power
60W
Maximum operating voltage
19.38V
Maximum operating current
3.10A
Open circuit voltage
22.0V
Short circuit current
3.47A
Tolerance
5%
Maximum system open circuit voltage
1000V
Solar Panel Dimensions
530mm*350mm*25mm
Operating temperature range
-40~85℃
Relative humidity
<90%
Frame thickness
0.88MM
Frame
Anodized aluminum alloy
Battery Specification
Solution
MPPT (input maximum power tracking algorithm), constant voltage output,
Battery capacity
12.8V/30AH (384WH)
Charging indication
LED status indicator
Input interface
Photovoltaic aviation plug
Output interface
DC5.5mm diameter standard male plug, 2-way output
Output voltage
12V±50mV
Output current
≤3A±50mA (total of two outputs)
Discharge utilization
≤90%
Operating temperature
Charging: 0~45℃
Discharging: -10~55℃ (accuracy: ±1℃)
Over-current protection
＞4A (over-current protection for more than 3 seconds, green light flashes)
Overcharge and over-discharge protection
Over-discharge protection: <10V;
Over-charge protection: >14.6V (accuracy: ±0.1V)
Output short circuit protection
Green light flashes, green light stays on after short circuit is removed
RS-485 communication
Output power, voltage, current and other information according to customer needs
Battery heating function
When photovoltaic input is available, heating starts when temperature is below 0℃, and stops when temperature rises to 8℃
Heating power
Maximum 15W
Storage temperature
-20~35℃
Battery case Dimensions
500mm*98mm*82mm
Product capacity
20%-30%
Battery material
Lithium iron phosphate/LifePO4 battery
Battery life and charging
Power off battery life
2 years (battery pack has no output after shutdown, power loss is self-discharge of battery cells, about 3%-5%/month)
Power on battery life
About 25 days (normal temperature, no load)
Load battery life
About 3 days (room temperature, no charging, mounted mobile camera sample + sound column measurement)
Recharge time (0~100% power)
Conditions: normal temperature, 60W photovoltaic panel, standard light duration 4~5 hours/day Without load: about 1 day With load: about 1.2 days
All-in-one Package
Size
730mm*520mm*240mm
Weight
(Include bracket and accessories)
11.5KG
Content
1* Solar Panel
1* Battery case(Inside with battery) with DC output connectors
1* Bracket for Solar panel &Battery case
1* U Shape mount for Pole installation
1* Screws pack
