5.8G 300M 3KM Wireless CPE with PoE Output for CCTV - Pairs
Features ◎ 5.8G 300M 3KM Wireless CPE with PoE Output for CCTV - Pairs ◎ Built-in 2×2 dual-polarized directional MIMO 12dBi antenna ◎ 802.3af/at PoE 48V output,can power up camera directly ◎ 10/100 Mbps LAN1 port support PoE 48V input or DC48V input, LAN2-5 ports support PoE 48V output ◎ 5.150GHz～5.850GHz Extension Channel ◎ Transmitting power: ≤ 28dBm ◎ auto-connect for PTP/PTMP application, no need setting software

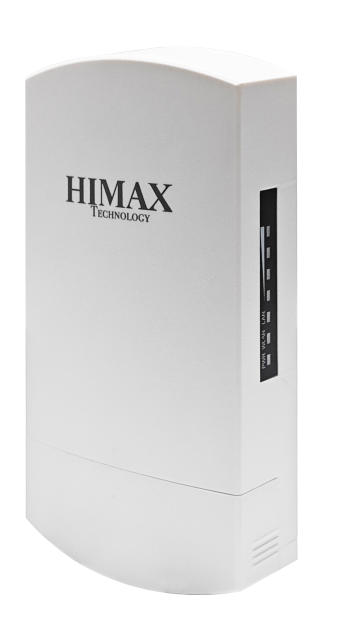

CPE233P(Pair) is a high power high performance 5.8G 11a/n 300Mbps wireless outdoor bridge CPE. It adopts Qualcomm chipset, external PA and directional 12dBi high gain antenna, it supports a transmission distance up to 3KM. It supports DC 48V and PoE 48V power input on LAN1, and PoE 48V power output on LAN2/3/4. It can connect with multiple cameras, eliminating the switch, and also can supply PoE 48V power to the cameras, eliminating power adapters or PoE switch. It is ideal to use for CCTV/IP camera data transmission for its stable wireless data transmission and multiple functions.
Model
CPE233P(Pair)
CPU
AR9344
storage
Flash：8MB ；DDR：64MB
Wired standard
IEEE802.3,IEEE802.3u
Ethernet interface
10/100Mbps LAN port * 1 (supports PoE input 48V)
10/100Mbps LAN port * 4 (supports PoE output of 48V)
antenna
Built in directional antenna 12dBi
Button
Reset Button * 1
Power supply method
LAN1 PoE 48V; DC input 48V
Panel indicator light
LED * 8 (PWR, 5.8G, LAN1~LAN5, S1 (signal strength))
Software specifications
system state
LAN status, wireless network status, maintenance information, device information, and traffic statistics
Wireless configuration
Basic wireless configuration, internet access configuration, advanced wireless configuration
LAN configuration
Static IP, DHCP
device management
Manage wireless status
system log
Software upgrade
Backup/Restore Settings
user management
QoS configuration
Maintain information service settings
Wireless specifications
Wireless standard
IEEE 802.11a/n
Wireless speed
300Mbps
Wireless power
22dBm
Wireless encryption method
WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK
Other specifications
application environment
Working temperature: -30 ℃~70 ℃
Working humidity: 10%~90% RH without condensation
Storage temperature: -40 ℃~80 ℃
Storage humidity: 5%~90% RH without condensation
Product size
230 * 106 * 37mm
Installation method
Pole and wall hanging
